Elbow
Coupler
Thread Adapter (Male)
Thread Adapter (Female)

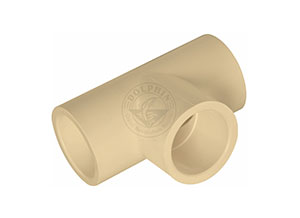

Tee
Union
EndCap
Tank Nippler
Reducer Coupler

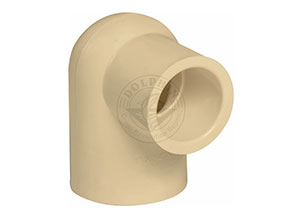

Reducer Elbow
Reducer MTA
Reducer FTA
Ball Valve

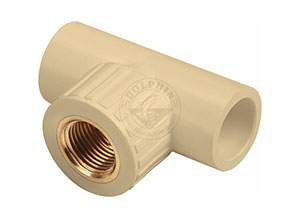

Brass TEE
Reducer Brass Elbow

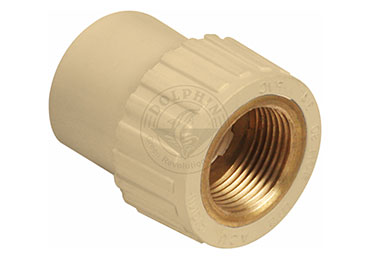

Brass FTA
Brass MTA
Reducer Brass TEE
Reducer Brass MTA
Reducer Brass FTA

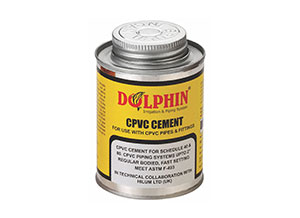

cpvc Cement
Nail Clamp
Metal Clamp
End Plug
1⁄2" to 2" For Pipes & 1⁄2" to 2" For Fittings
Pipes : IS 1577B(SDR 11 & 13.5)
Fittings : ASTMD2846(SDR11)
Resistant to Corrosin :
Even under the harshest water Conditions, DOLPHIN CPVC pipe & Fittings give excellent resistant don't need to worry about impure water due to corresion of metalpipes or soldered joints.
Handles Hot and Cold Water :
DOLPHIN CPVC can work equally efficiently with both extremely hot and cold water.This compability is second to none owing to its heat efficency and lower installation cost.
Low Thermal Expansion :
Compared to other plastic pipes,CPVC has lower coefficient of thermal expansion, thereby avoiding looping of pipe due to heat expansion.
Easy Welding Process :
CPVC employs simple solvent cement along with inexpensive tools, Also electrical source isn't needed as Well.
Superior Insulation :
Compared to metal pipes,CPVC does not lose heat leading to less heat loss decreased thermal expension.
Safe from fire :
These pipes do not support combustion due to Limiting Oxygen Index (LOI) of 60 making it combustion resistance. It doesn’t lead to flaming drips, high smoke generation excess fire load.
Tough, Durable Material :
CPVC material is extremely though and durable, making it possible to achieve same flow rate with a smaller pipe size. Compared to all other thermoplastics, CPVC has a much higher strength and hence has higher pressure bearing capability.
Resistant to Damage by Cholerine :
Chlorine is mostly used in India for cleaning potable water but it adversely affects metal pipes. CPVC pipes solve this issue with chlorine being unable to break its polymer chains, thus avoiding possible leaks.
Resistant of Chemicals :
DOPHIN CPVC is highly resistant to many chemical, even strong mineral acids & bases.
Accepted by World :
CPVC Pipes and Fittings are the preferred choice in many countries including UK, USA, Germany, Netherlands & Liddle East etc. it is also the chosen potable water pipe & fitting in India.
Avoid Scale, Pit or Leach Formation :
CPVC manages to maintain full water carrying capacity even after years of its installation due to its resistance to low pH water, coastal salt air exposure and corrosive soil.
Cost Effective Choice :
CPVC Piping & Fitting is highly cost effective, it saves cost on tools, fittings, anchors, offsets, labour, loops etc. They can last over 50 years, bringing down the overall cost of the entire piping and fitting system as a whole.
Cost Effective Choice :
CPVC Piping & Fitting is highly cost effective, it saves cost on tools, fittings, anchors, offsets, labour, loops etc. They can last over 50 years, bringing down the overall cost of the entire piping and fitting system as a whole.
Nominal Bore | Outside Diameter | SDR - 11 | SDR - 13.5 | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Wall Thickness | Working Presure | Wall Thickness | Working Presure | |||||||
Inch | mm | mm | Min. (mm) | Max. (mm) | At 270C (kg/cm2) | At 820C (kg/cm2) | Min. (mm) | Max. (mm) | At 270C (kg/cm2) | At 820C (kg/cm2) |
1⁄2 | 15 | 15.90 (±0.10) | 1.70 | 2.20 | 28.14 | 6.93 | 1.40 | 1.90 | 22.22 | 5.60 |
3⁄4 | 20 | 22.20 (±0.10) | 2.00 | 2.50 | 28.14 | 6.93 | 1.70 | 2.20 | 22.22 | 5.60 |
1 | 25 | 28.60 (±0.10) | 2.60 | 3.10 | 28.14 | 6.93 | 2.10 | 2.60 | 22.22 | 5.60 |
11⁄4 | 32 | 34.90 (±0.10) | 3.20 | 3.70 | 28.14 | 6.93 | 2.60 | 3.10 | 22.22 | 5.60 |
13⁄2 | 40 | 41.30 (±0.10) | 3.80 | 4.30 | 28.14 | 6.93 | 3.10 | 3.60 | 22.22 | 5.60 |
2 | 50 | 54.00 (±0.10) | 4.90 | 5.50 | 28.14 | 6.93 | 4.00 | 4.60 | 22.22 | 5.60 |
